Specification
Type : AIO
Brand : ARCTIC

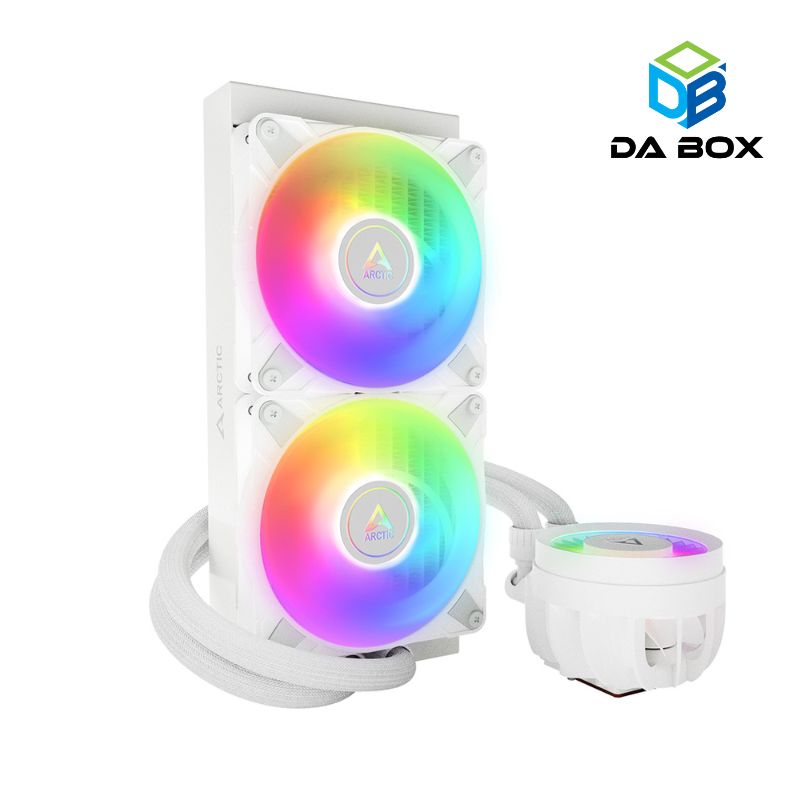

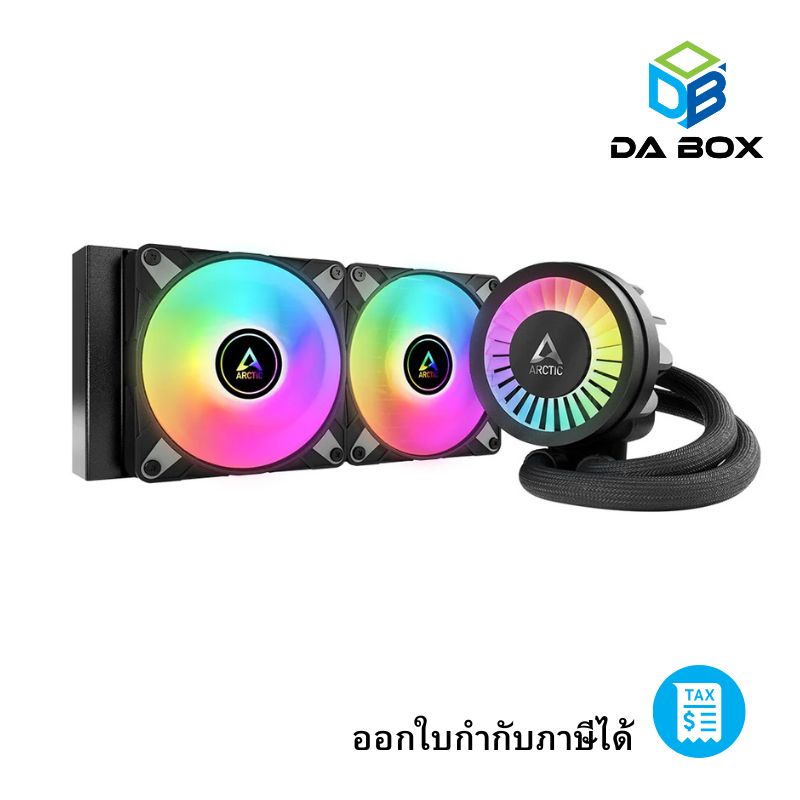

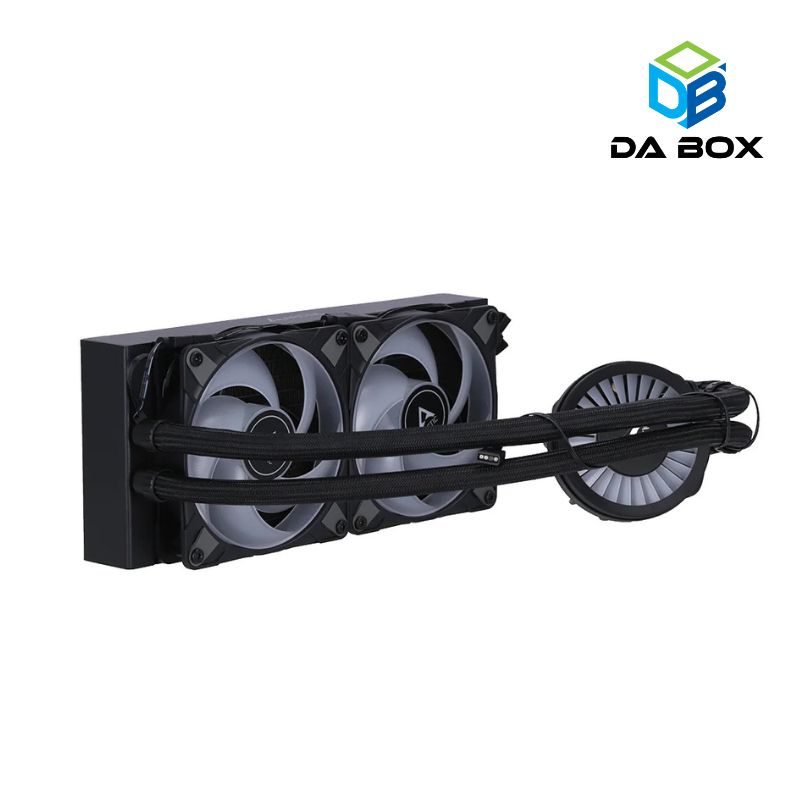

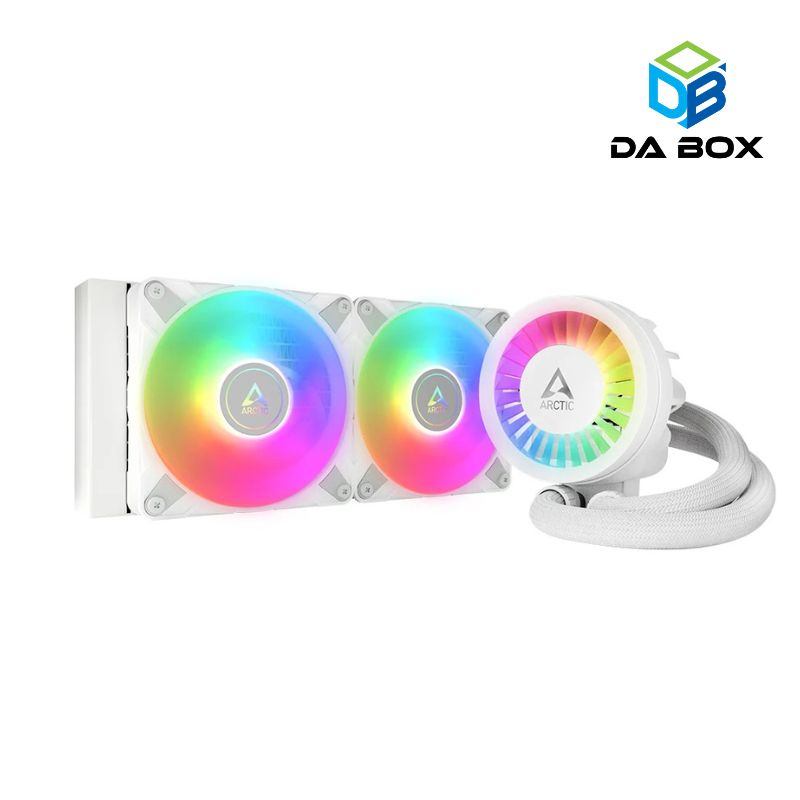

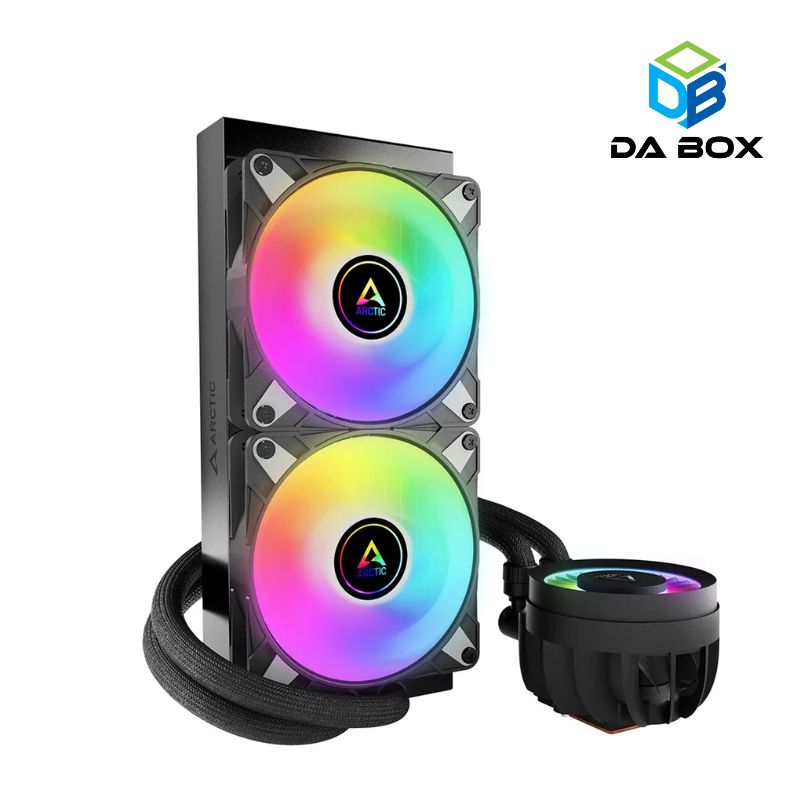

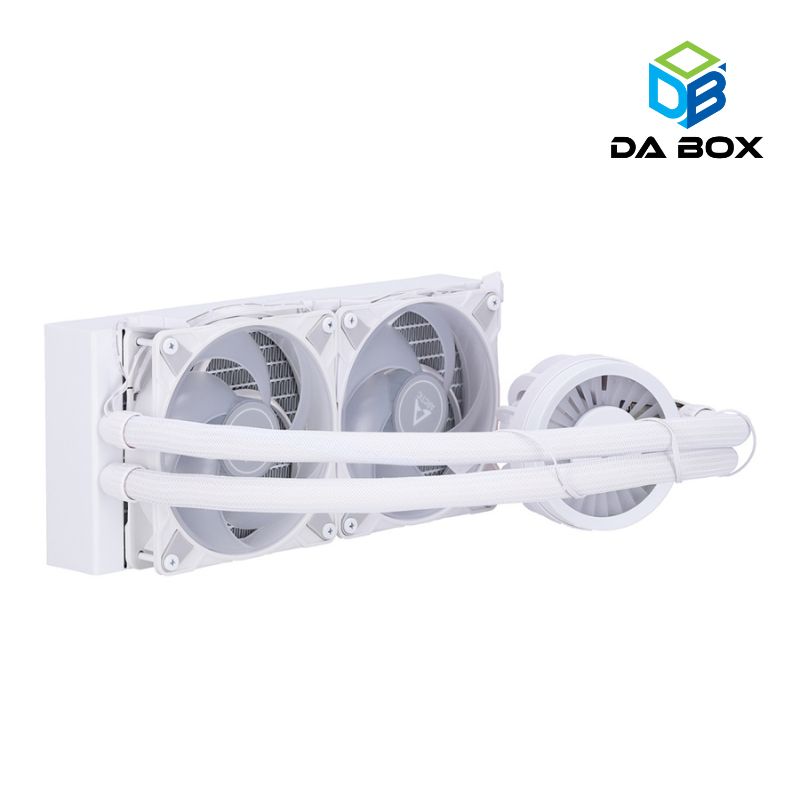

Model : LIQUID FREEZER III 240 A-RGB
Compatibillity
Intel : 1851, 1700
AMD : AM5, AM4
PI / NNPI : 308 / 230
TIM : MX-6 (0.8 g)
Operating Ambient Temperature : 0/40 °C
Weight : 1490 g
LED Connector : 3-Pin A-RGB Connector
All-In-One Connector : 4-Pin PWM Connector
Splitt Connector : 3x 4-Pin PWM Connector
Pump
Pump : 800 – 2800 rpm (PWM controlled)
Current / Voltage : 0.35 A / 12 V DC

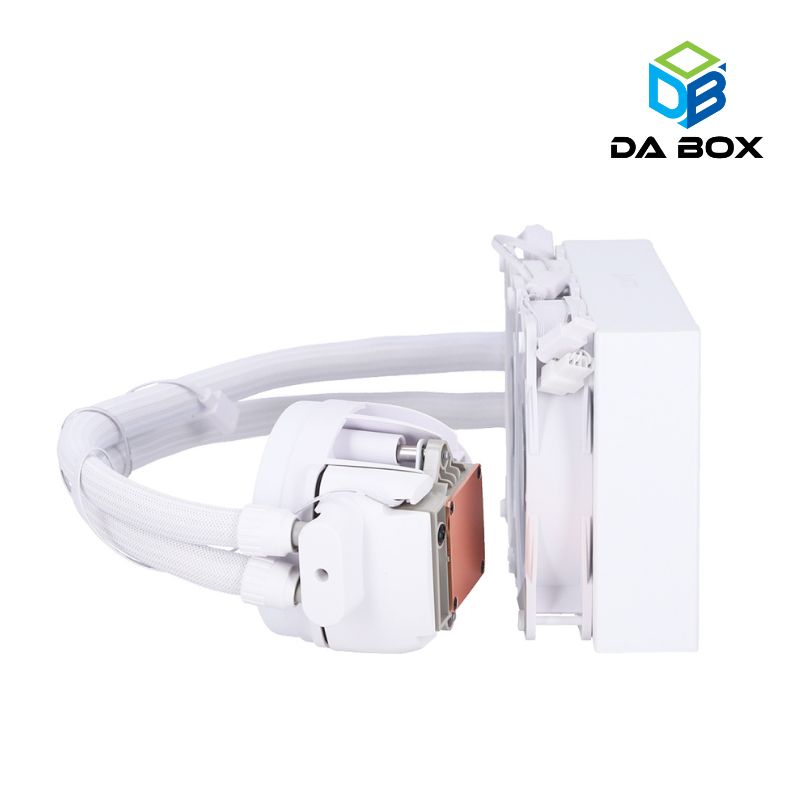

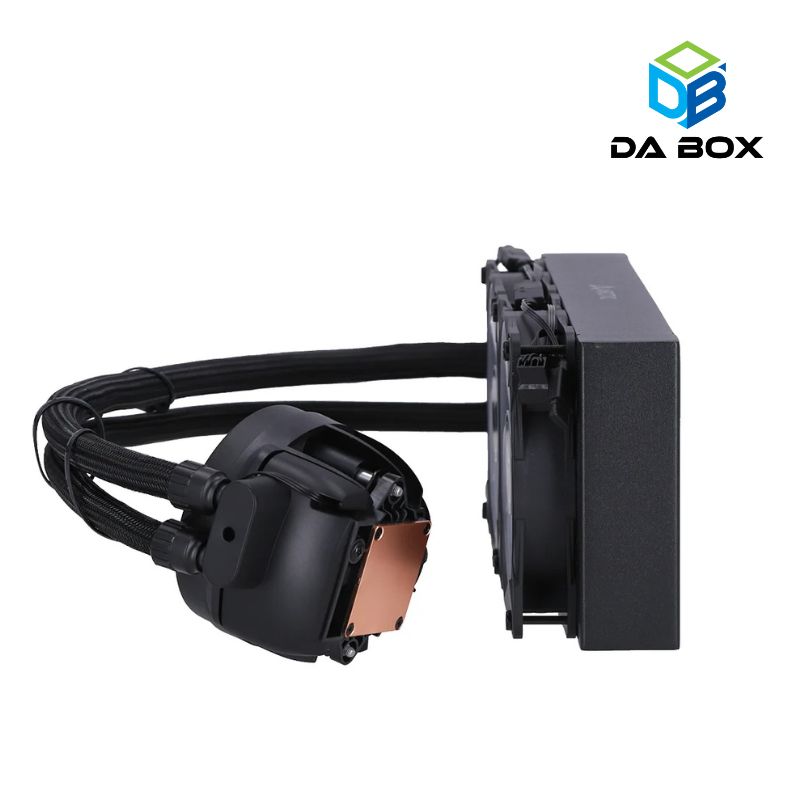

Cold Plate : Copper, Micro Skived Fins
Tube Length : 450 mm
Tube Diameter : Outer: 12.4 mm
Inner: 6.0 mm
Radiator
Material : Aluminium
Dimensions : 277 (L) x 120 (W) x 38 (H) mm
VRM Module
VRM Fan : 400 – 2500 rpm (PWM controlled)
Current / Voltage : 0.05 A / 12 V DC
LEDs : 12 x A-RGB LEDs
Current / Voltage : 0.40 A / 5 V DC
Radiator Fans
Fan : 2 x P12 PWM PST A-RGB
Speed : 200 – 2000 rpm
Air Flow : 48.82 cfm / 82.91 m3/h
Static Pressure : 1.85 mmH2O
Bearing : Fluid Dynamic Bearing
Current / Voltage : 0.11 A / 12 V DC
Cable Lenght : 40 mm
Connector : 4-Pin PWM Connector
RGB
LEDs : 12 x A-RGB LEDs
Current / Voltage : 0.40 V / 5 V DC
Cable Lenght : 40 mm + 80 mm Splitter Cable
Connector : 3-Pin A-RGB Connector + 3-Pin Plug
Warranty : 6 Years
